TWIN SPINDLE CNC LATHE, OKUMA & HOWA - 2SP 35HG

TWIN SPINDLE CNC LATHE, OKUMA & HOWA - 2SP 35HG
Send Inquiry
Product Code : 23
Brand Name : OKUMA & HOWA
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Specifications
  • Product Type
  • Other
  • Cutting Speed
  • 3500 RPM
  • CNC Or Not
  • CNC
  • Automatic Grade
  • Automatic
  • Control System
  • Other
  • Max. Swing Diameter
  • 380 Millimeter (mm)
  • Weight (kg)
  • 10000 Kilograms (kg)
  • Feature
  • Low Noise, Simple Control, High Performance, ECO Friendly, High Efficiency, Stable Performance
Product Description

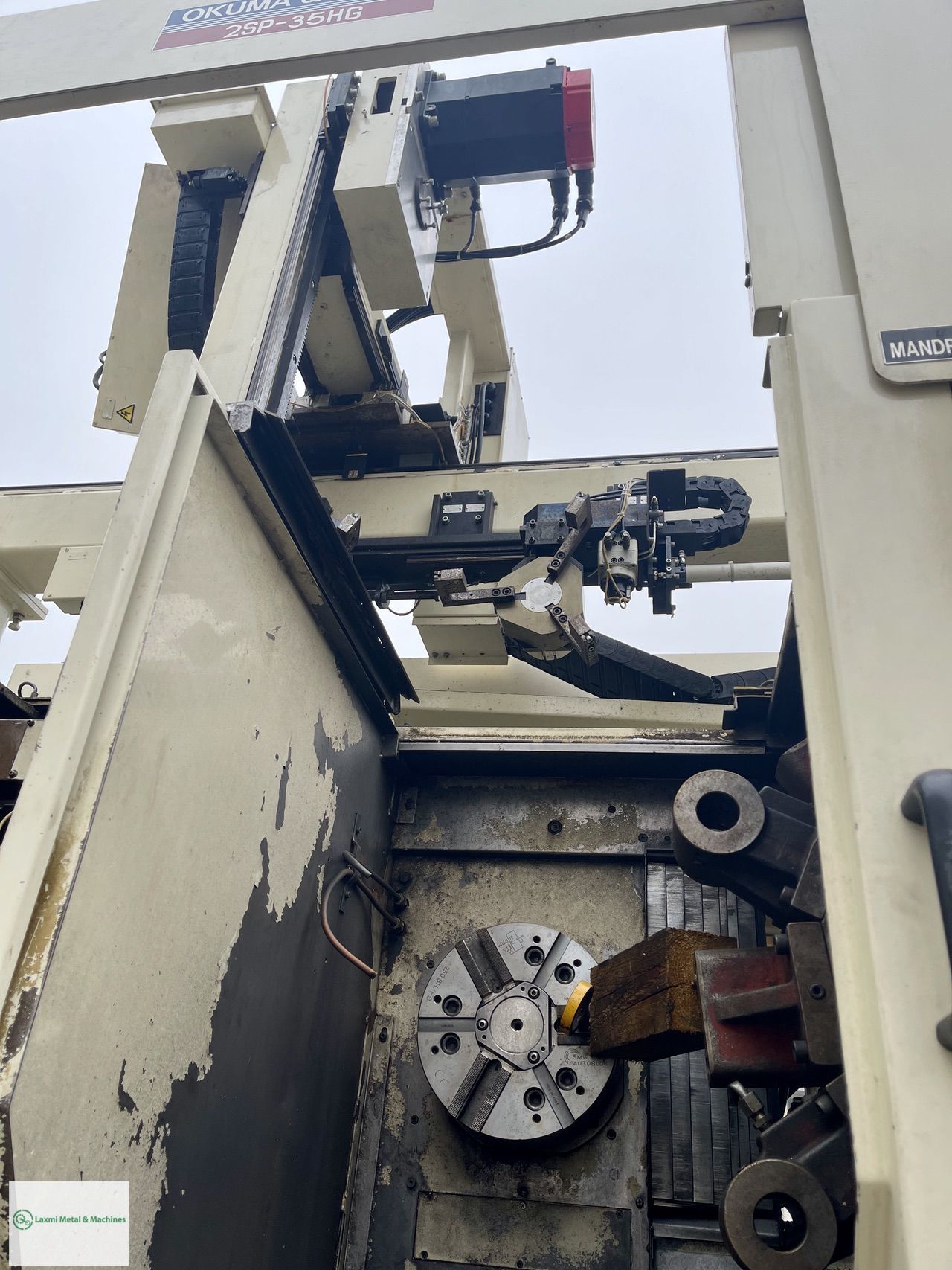

TWIN-SPINDLE CNC LATHE with NEW SPINDLE LINES

Brand: OKUMA

Model: 2SP - 35 HG

Control: FANUC 18-T

Center distance between spindles: 450 mm
Max. Turning diameter: 380 mm - MANUAL LOAD or with ROBOT

Max. Turning diameter: 160 mm - with OGL LOADER
Max. Turning length: 230 mm

RIGHT and LEFT SPINDLE: Spindle taper: A 2-8
Spindle bore: 82 mm.
Spindle speed: 35 - 3500
Max power available: 18,5 KW.

Longitudinal slide travel - Z : 230 mm. Cross slide travel - X: 225 mm.
Rapid feeds X - Z AXES: 24/30 m / min. Tool stations: 12 + 12

Machine weight: about 9200 Kg.

Floor space: 3.8 x 5.5 m.


ACCESSORIES:
N.2 SELF-CENTERING DIA. 250 AUTOBLOCK
CHIP EVACUATOR
AUTOMATIC DOORS
TOOL HOLDER KIT
SELF-CENTERING BLOW
SPINDLE ORIENTATION
INTEGRATED PORTAL LOADER WITH PIECES TILTER
N.1 WAREHOUSE WITH 16 STATIONS ON THE RIGHT SIDE

Trade Information
  • Supply Ability
  • 1 Piece Per Month
  • Delivery Time
  • 1 Months
  • Main Export Market(s)
  • Western Europe, Middle East, Central America, Eastern Europe, South America, Asia, North America, Australia, Africa
  • Main Domestic Market
  • All India
