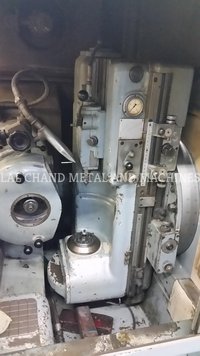

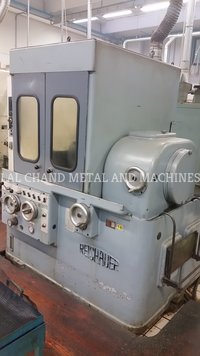

REISHAUER Gear Grinder

REISHAUER Gear Grinder
Send Inquiry
Product Code : REISHAUER-NZA
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

We are emerging as one of the fastest growing companies, engaged in the business of manufacturing and supplying Reishauer Gear Grinder. It is utilized for finishing spur, worm, & helical gears, and screws & rotors. This grinder works on a twin spindle technology and is installed with an electronic gearbox that reduces the fuel consumption, CO2emission, and noise level. Offered Reishauer Gear Grinder is used in automobile industry and is capable of shaping car transmission gears and medium size truck & motorcycle gears as well.

Features:

  • Short reaction time of spindles

  • High cutting speed

  • Can handle shaft-type workpieces

Specification:

  • Gear Grinder
  • Make : Reishauer
  • Model : Nza
  • Machine Equipped With Fassler.
  • Max Grinding Diameter : 300 Mm.
  • Min Grinding Diameter : 10 Mm.
  • Gear Width : 170 Mm.
  • Module: Min : 0,5 / Max : 5.
  • Max Clamping Length : 420 Mm.
  • Max Angle of Teeth : 45°.
  • Number of Teeth : Min : 12 / Max : 130.
  • Slide Stroke : 200 Mm.
  • Helical Lead : Min : 200 Mm / Max : 6000 Mm.
  • Max Diameter of Grinding Wheel : 350 Mm.
  • Max Width of Grinding Wheel : 84 Mm.
  • Total Power Requirement : 9 Kw.
  • Dimensions : 2500x2000x2300 Mm.
  • Total Weight : 4600 Kg.
