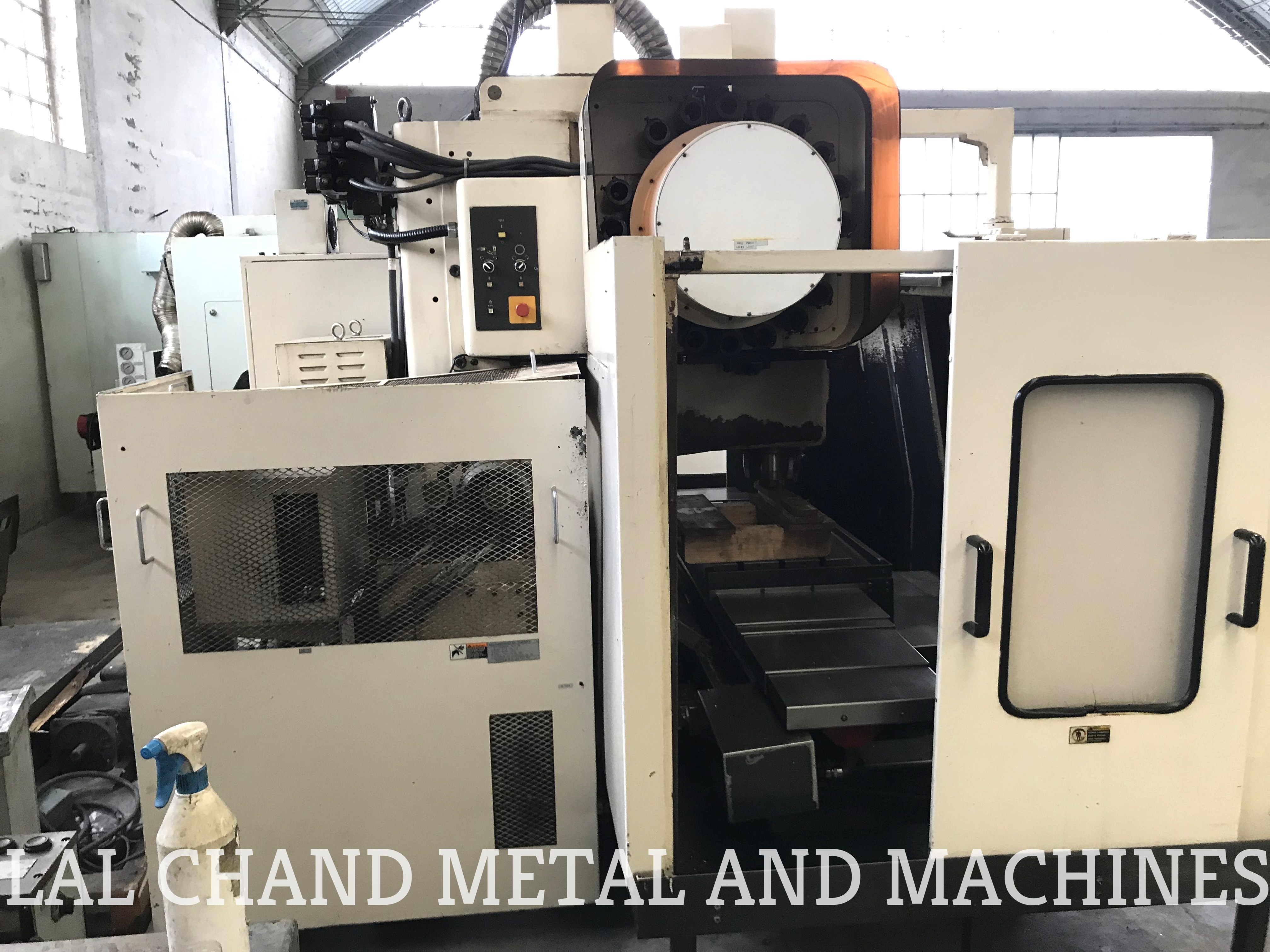

MV - 3A , YANG VERTICAL MACHINING CENTER
Product Code : VMC
Brand Name : YANG
Price And Quantity
- Minimum Order Quantity
- 1 Piece
- Price Range
- 1001.00 - 5000.00 USD ($)/Piece
Product Specifications
- Product Type
- VMC
Product Description
VMC
- Make : YANG.
- Model : MV-3A.
- CONTROL : FANUC series 0-M.
- Table size : 900 x 525 mm.
- Working area : 900 x 430 mm.
- X axis : 762 mm.
- Y axis : 450 mm.
- Z axis : 500 mm.
- Distance from spindle nose to table : 125 - 625 mm.
- Distance from spindle center to column : 500 mm.
- Spindle taper : ISO 40.
- Spindle nose outer diameter : 75 mm
- Spindle speed range : 45 - 4500 rpm.
- Cutting federate of X,Y,Z axis : 1-4000 mm/min.
- Rapid traverse speed of X,Y,Z axis : 12 m/min.
- Tool capacity : 20 pcs.
- AC spindle motor : FANUC #6 5.5/7.5 KW.
- X,Y,Z axis AC servo motor : FANUC #10 1.6 KW. ( Z axis with brake ). General dimensions : 2670 x 2793 x 2916 mm.
- Tot. weight of the machine : 6200 Kg.
Trade Information
- Supply Ability
- 10 Piece Per Day
- Delivery Time
- 1 Week
