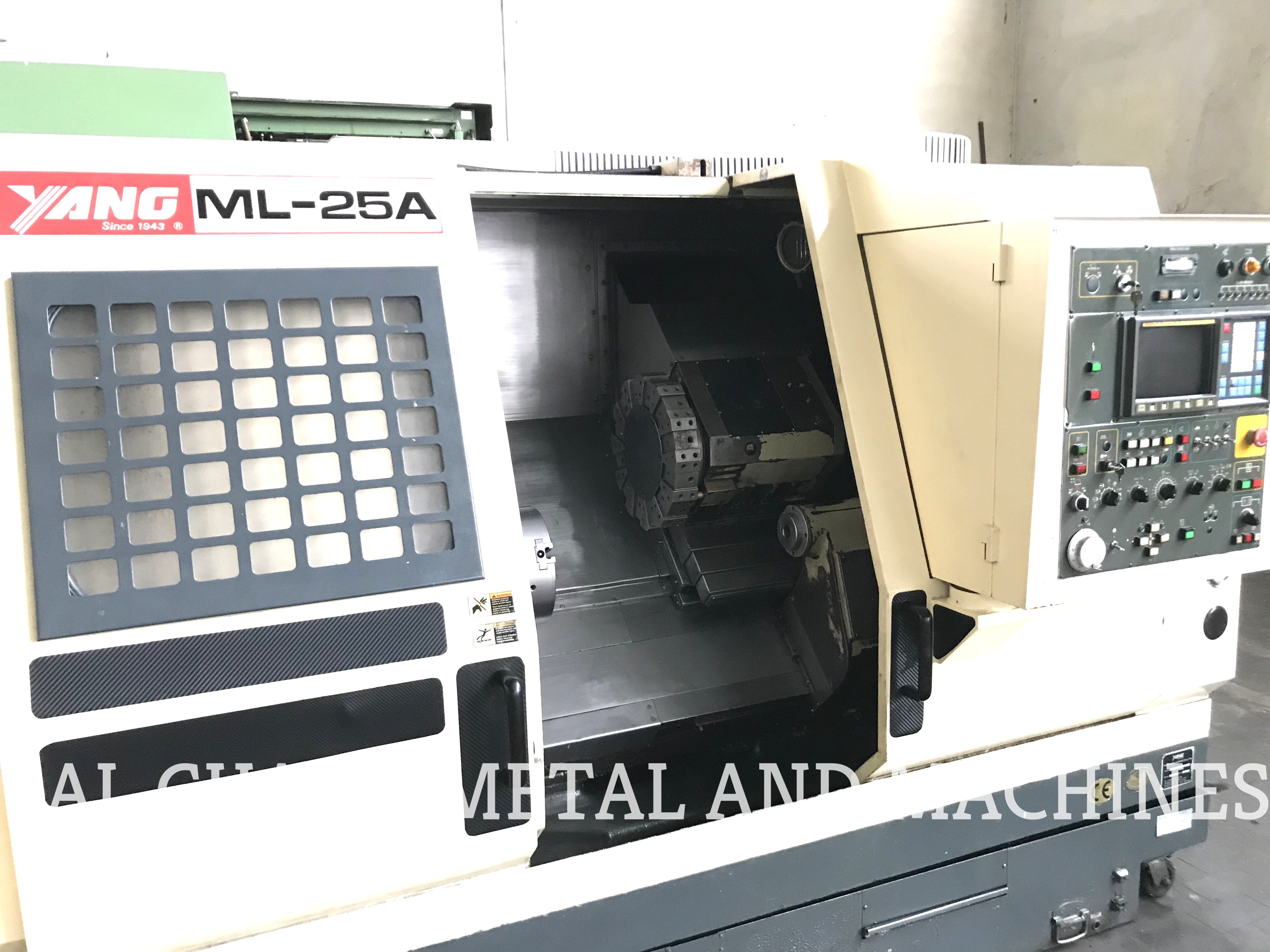

ML 25A , YANG CNC LATHE

ML 25A , YANG CNC LATHE
Send Inquiry
Product Code : YANG CNC LATHE
Brand Name : CNC LATHE
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Product Type
  • Turning Center
  • CNC Or Not
  • CNC
Product Description
CNC LATHE
  • Make : YANG.
  • Model : ML 25A.
  • CONTROL : FANUC series 0-T.
  • Swing over bed dia : 550 mm.
  • Chuck diameter : 280 x 520 mm.
  • Swing over saddle : 350 mm.
  • Max. distance between center : 600 mm. Max. longitudinal travel : 520 mm.
  • Z axis feed motor : FANUC AC servo motor 10S 1.8 Kw. Rapid feed of Z axis : 12 m/min.
  • Max. cross travel : 216 mm.
  • X axis feed motor : FANUC AC servo motor 5S. 0.9 Kw. Rapid feed of X axis : 20 m/min.
  • Front bearings bore dia : 110 mm.
  • Thru hole dia : 77 mm.
  • Taper of spindle bore : MT NO. 7.
  • Spindle drive motor : FANUC AC spindle motor 8S 7.5 Kw / 11 Kw. Spindel speed : 45 - 4500 rpm.
  • Diameter of tailstock spindle : 85 mm.
  • Vertical octagonal turret.
  • Height from bed to spindle center line : 295 mm. General dimension : 4000 x 2000 x 2220 mm. Total weight of the machine : 5000 Kg.
