HOB SHARPENING MACHINE KLINGELNBERG agw 231

HOB SHARPENING MACHINE KLINGELNBERG agw 231
Send Inquiry
Product Code : HOB SHARPENING MACHINE. KLINGELNBERG. AGW 231.
Brand Name : KLINGELENBERG AGW 231
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price Range
  • 1001.00 - 5000.00 USD ($)/Piece
Product Description



HOB SHARPENING MACHINE.

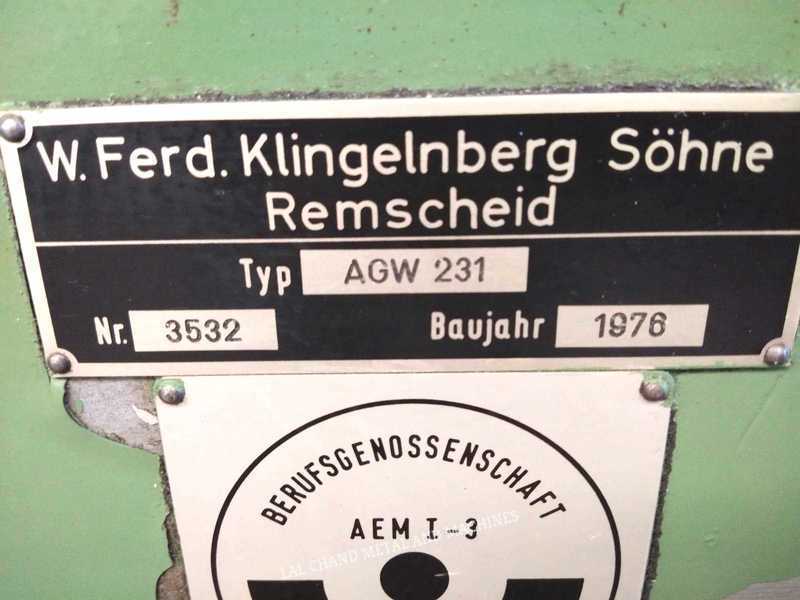

  • Make : KLINGELNBERG.
  • Model : AGW 231.
  • Grinding diameter (straight flutes) : 250 mm. Grinding diameter (helical flutes) : 230 mm. Grinding length : 350 mm.Max. module : 22.
  • Min. module : 1,5.
  • Max. work-piece diameter : 250 mm. Grinding slide stroke : 475 mm.
  • Max. grinding wheel diameter : 250 mm. Min. grinding wheel diameter : 150 mm. Grinding wheel speed : 1500-2700 rpm. Max.
  • lead angle : 45o.
  • Min. flute lead : 125 mm.
  • Number of flutes : 3-45.
  • Max. depth of flute : 50 mm.
  • Work spindle taper : No.40 INT.
  • Distance between centres : 260-660 mm. Total power requirement : 10 kW. Machine approx weight : 4300 Kg.

MACHINE IS EQUIPPED WITH A LOT OF CHANGE GEAR, ARBOUR & INDEX PLATES.
