Cnc Gear Hobbing, Wmw Modul - Zfwz 1250. Siemens 840.
Product Code : 00
Brand Name : WMW
Price And Quantity
Product Specifications
- Product Type
- CNC GEAR HOBBING
- General Use
- gear manufacturing
- Material
- Metal
- Type
- Horizontal, Vertical
- Weight (kg)
- 23000 Kilograms (kg)
- Computerized
- Yes
- Automatic
- Yes
- PLC Control
- Yes
- Bar Feeder
- Yes
- Power Source
- Electric
- Rigidity
- High
- Table Size
- 1250 mm
- Spindle Speed
- 200 RPM
- Feature
- High Precision, High Speed
- Color
- Green
Product Description

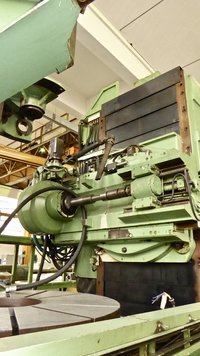

Cnc Gear Hobbing, Wmw Modul - Zfwz 1250. Siemens 840.
CNC GEAR HOBBING
Make : WMW MODUL.
Model : ZFWZ 1250.

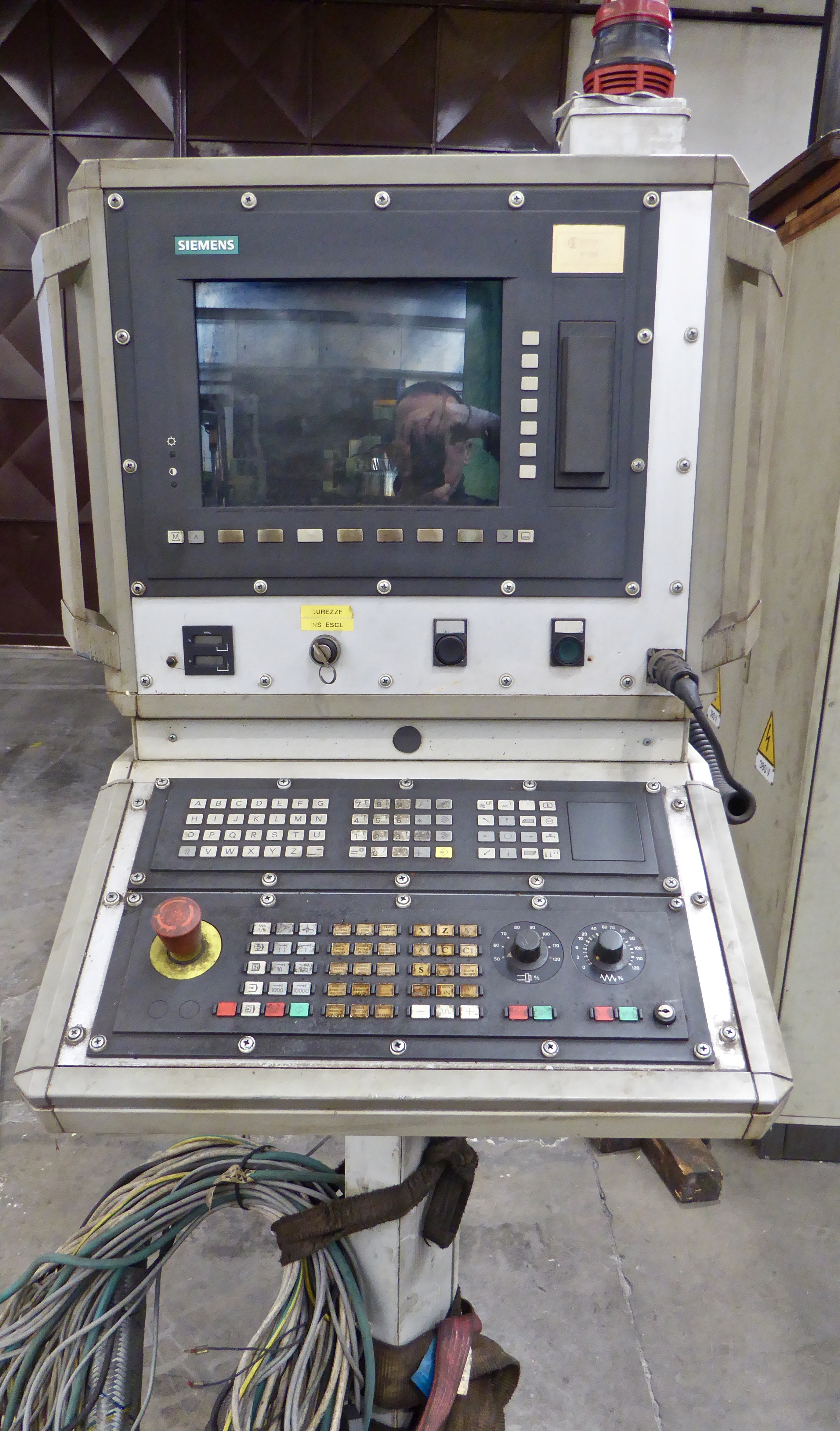

Control : SIEMENS 840 D.
Max. Wheel dia : 1250 mm.
Gear width : 600 mm.
Max. Module : 16.
Min. Module : 2.
Diameter of hob : 240 x 280 mm.
Spindle speed : 200 rpm.
Feeds - axial : 0,28 - 8 mm/min.
Feeds - radial : 0,1 - 2 mm/min.
Feeds - tangential : 0,16 - 4 mm/min.
Support swivability - left/rigth : +/- 45
Approx weight of the machine : 20 ton.
Trade Information
- Delivery Time
- 1 Months
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, Australia, Asia
- Main Domestic Market
- All India
