CK3B , YANG CNC LATHE

CK3B  , YANG CNC LATHE
Send Inquiry
Product Code : CNC LATHE
Brand Name : YANG
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price Range
  • 3001.00 - 5000.00 USD ($)/Piece
Product Specifications
  • Product Type
  • Turning Center
  • CNC Or Not
  • CNC
Product Description

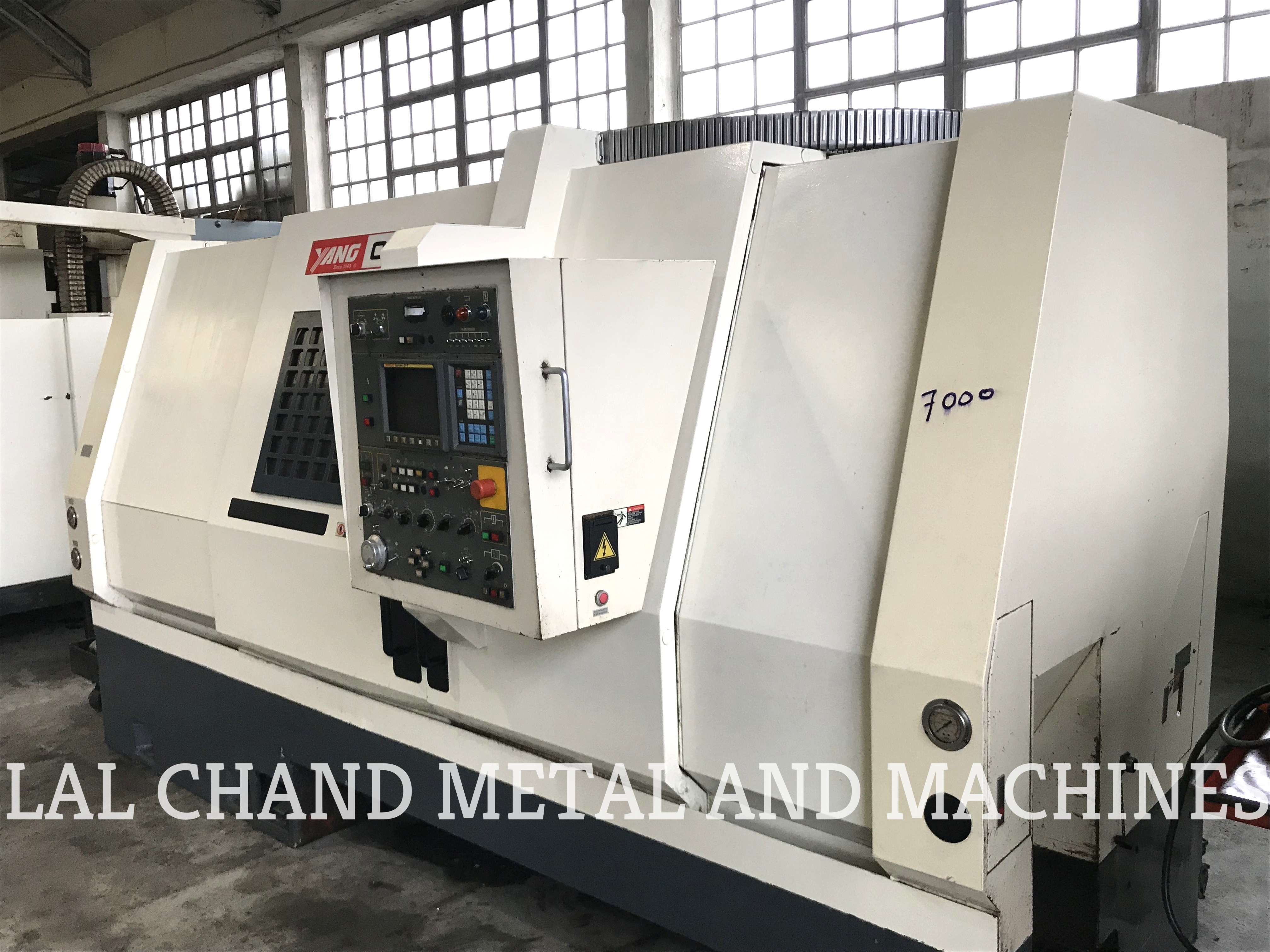

CNC LATHE


  • Make : YANG
  • Model : CK - 3B.
  • CONTROL : FANUC series 0-T.
  • Swing over bed dia : 650 mm.
  • Max. machinning dia : 390 x 1220 mm.
  • Max. distance between center : 1320 mm.
  • Max. longitudinal travel (Z axis) : 1230 mm.
  • Z axis feed motor : FANUC AC servo motor 20S 3.5 Kw. Rapid feed of Z axis : 15 m/min.
  • Max. cross travel ( X axis ) : 255 mm.
  • X axis feed motor : FANUC AC servo motor 10S. 1.8 Kw.
  • Rapid feed of X axis : 12 m/min.
  • Rapid feed of C axis : 500 rev/min.
  • C axis feed motor : FANUC AC servo motor 0S. 0.75 Kw.
  • Front bearings bore dia : 120 mm.
  • Thru hole dia : 86 mm / 64 mm; 86 mm / 75 mm. (Optional).
  • Spindle nose no : ASA A - 2 - 8.
  • Taper of spindle bore : 1/20.
  • Spindle drive motor : FANUC AC spindle motor 15S 15 Kw / 18.5 Kw. Spindle speed : 30 - 3000 rpm; 35 - 3500 rpm.
  • Diameter of tailstock spindle : 85 mm.
  • Vertical octagonal turret.
  • Height from floor to spindle center line : 1120 mm.
  • Height from bed to spindle center line : 330 mm.
  • General dimension : 4850 x 2500 x 2550 mm.
  • Total weight of the machine : 7500 Kg.
Trade Information
  • Supply Ability
  • 10 Piece Per Day
  • Delivery Time
  • 1 Week
