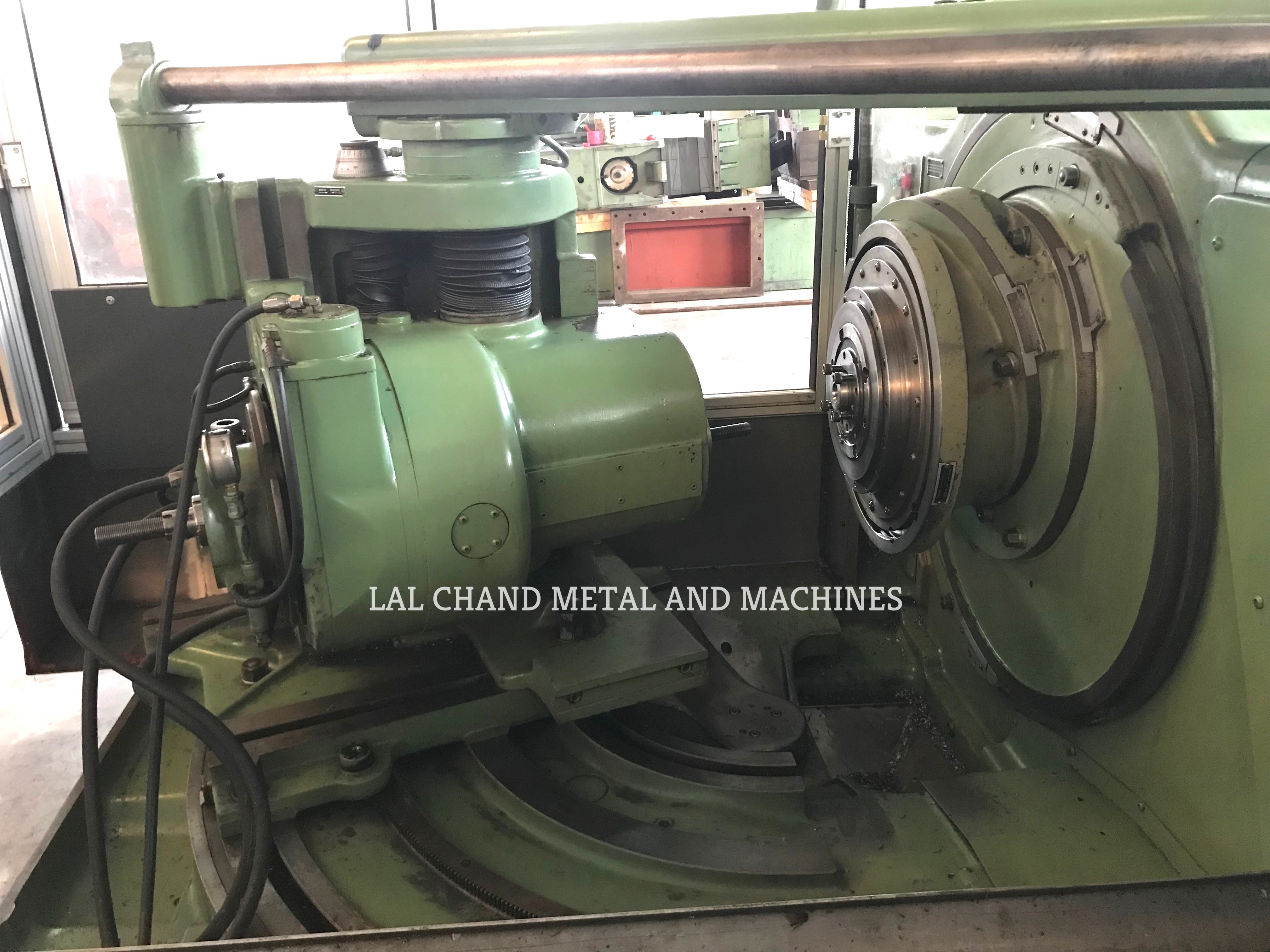

Bevel Gear Generator , GLEASON 116



HYPOID GEAR FINISHER - SPIRAL BEVEL GEAR GENERATOR.

• Make : GLEASON
• Model : 116.
• Max cone distance (30 degree angle and 300 mm cutter) : 228 m.
• Max - Min module : 10 to 1.



Max gear pitch diameter (30 degree spiral angle) :
 -Ratio 10 to 1 : 457 mm.
 -Ratio 2 to 1 : 406 mm.
 -Ratio 1 to 1 : 323 mm.

• Diametral pitch (coarsest) : 12,7 mod.
• Max full depth : 25,4 mm.
• Max face width : 69,9 mm.
• Number of teeth : 5 to 150.


WORK SPINDLE :

• Diameter of taper hole at large end : 100 mm.
• Taper per foot : 39/1600 mm.
• Depth of taper : 150 mm.
• Diameter of spindle nose : 137,5 mm.


CUTTER DIAMETER :

Diameter : 125 mm; 150 mm; 187,5 mm; 225 mm; 300 mm.

WORKHEAD SETTINGS :

• Max offset above center : 112,5 mm.
• Max offset bellow center : 112,5 mm.

Distance from machine center to nose of spindle :
 -Max : 337,5 mm.
 -Min : 62,5 mm.

SPEEDS AND FEEDS :

• Cutter speeds : 20 to 115 rpm.
• Feed (seconds per tooth) : 9 to 80 seconds.

ELECTRICAL EQUIPMENT :

• Voltage : 380 V, 50 Hz.
• Feed motor : 5,5 kW.
• Hydraulic motor : 3 kW.
• Coolant motor : 1,5 kW.

OTHER DETAILS :

• Floor space : 2560x1980 mm.
• Height : 1620 mm.
• Net weight : 11000 kg approx.

MACHINE IS COMPLETE WITH MANY GEAR CHANGES.
