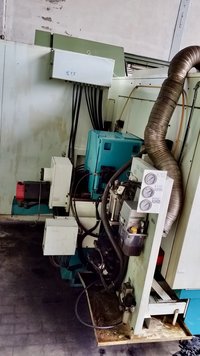

5 AXIS CNC GEAR SHAVING, MIKRON-CIMA - H 250.

5 AXIS CNC GEAR SHAVING, MIKRON-CIMA - H 250.
Send Inquiry
Product Code : 20
Brand Name : MIKRON-CIMA
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
Product Specifications
  • Product Type
  • CNC GEAR SHAVING
  • General Use
  • GEAR TEMPER AND GEAR SHAVING
  • Weight (kg)
  • 5000 Kilograms (kg)
  • Computerized
  • Yes
  • Automatic
  • Yes
  • PLC Control
  • No
  • Color
  • White
Product Description

Cnc Gear Shaving Machine

  • Make : Mikron Cima
    Model : H 250 Cnc

Component :

  • Outer Diameter : 25-250 Mm.
  • Width (gear) : Max. 150 Mm.
  • Length (shaft) : Max. 580:600 Mm. Module : 0.5 - 5.5.

Wheel :

  • Outer Diameter : 300 & 350 Mm.
  • Width : Max. 50 Mm.
  • Swivel Angle : (R) 25 & (L) 25.

Revolution :

  • Wheel Speed : 10:750 Rpm.
  • Component Speed : Max. 8000 Rpm.

Table :

  • Feed Speed : 1:1000 Rpm.
  • Stroke : (R) 100 & (L) 100 Mm.
  • Swing Angle By Crowning : Max. 3°

Cutting Method :

  • plunge.
  • plunge With Oscillation ( Table Feed ).
  • conventional.

Cnc :

  • 5 Axis Cnc Control Unit ( Fanuc Series 0m-C).

Power Supply

  • Power Circuit : 3 Phase Ac380v 50hz. Control Circuit : Ac 100v & Dc 24v. Total Power : 20 Kva
  • Machine Weight : 5000 Kg.
  • Ac Servo Motor Model 0s (0.55 Kw) Ac Servo Motor Model 5s (0.9 Kw) Ac Servo Motor Model 1 0 S (1.8 Kw) Ac Servo Motor Model 0s (0.55 Kw) Ac Spindle Motor Model 3s (3.7 Kw).



Trade Information
  • Supply Ability
  • 1 Piece Per Week
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
